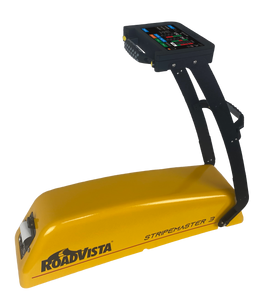

The StripeMaster® 3 retroreflectometer is an all-in-one pavement marking asset management system enabling agencies and contractors with fast and reliable insight into pavement markings for increased safety on roadways, highways and airfields. Field proven and easy-to-use functionality provide operators increased safety with rapid measurements of road marking retroreflection and visibility.
It is lightweight and simple to operate with a retractable handle. Simply click on handle to open, place, shoot, read and record for comprehensive testing and full discernment of the retroreflectivity of road stripes. There is little training needed with a large, intuitive touch screen interface providing the operator immediate data in the field, as well as data retrieval capability after in-field measurements.
Safe Workers and Motorists
- Lightweight, balanced operation without requiring the operator to bend down
- Reduces a worker’s time in-roadway, while offering a quick and easy method of determining retroreflectivity, daytime luminance factor (Qd), and nighttime color values
Simple Setup and Use
- Auto-lifting, retractable handle with 7-inch touch screen display for easy operation
- Built-in GPS and printer for immediate on-site records
- Full asset management tool with data fields to enter additional information about the pavement markings, including Pass/Fail criteria.
- Includes easy-to-use software for data management - create tabular data reports, KML and Shape files for easy visualization and GIS management
- Included interchangeable battery pack, charger & calibration standard
Robust, Reliable and Field-Proven
- Ruggedized light source, & commercial-grade rechargeable battery
Comprehensive Data Management
- Onsite data management and on-demand printing available in the field
- Easy data export for complete documentation and tracking
- Uploading collected data to a computer is easy with USB or Bluetooth connectivity.
| Data Parameters | SM3-RL | SM3-RL-QD | SM3-RL-QD-C |
|---|---|---|---|
| Measures retroreflectivity RL per ASTM E1710 and EN1436 | X | X | X |
| Measures daylight visibility Qd per ASTM E2302 and EN1436 | X | X | |
| Measures night-time retroreflected CIE chromaticity per ASTM D6628 and EN1436 | X | ||
| Measures retroreflectivity in continuous wetting (rain) per ASTM E2832 | X | X | X |
| Measures retroreflectivity in wet conditions per ASTM E2177 | X | X | X |
| Records GPS coordinates with each measurement utilizing 56-Channel WAAS-, EGNOS-, MSAS-enabled for <2.5 meter position fix uncertainty. | X | X | X |
| Optional averaging of multiple measurements | X | X | X |
| Custom file information for storing job name / type / user | X | X | X |
| Extensive measurement range for accurate low to high precision range | X | X | X |
| Large memory capacity to accommodate large projects between data downloads | X | X | X |
| USB computer interface for data transfer and instrument configuration | X | X | X |
| Data integration software compatible with Excel and Google Maps | X | X | X |
| Calibration certification | X | X | X |
| Temperature and humidity recorded with each measurement | X | X | X |
| User customized data fields –location on road, install date, material type, etc. | X | X | X |
| User customized settings for pass / fail criteria | X | X | X |
| Design Parameters |
|---|
| Built-in printer for on-site paper records as required |
| Built-in USB flash drive port for on-site digital records as required |
| Auto-lifting, retractable handle for easy operation and storage |
| Two conveniently located trigger buttons for simple left or right one-handed operation |
| Quick charge battery charger |
| 7-inch color touch screen interface |
| Certified calibration block for easy and fast field calibration |
| Durable carrying case for storage and transport |
| Accurately measures all industry standard colors |
| Bluetooth interface for wireless operation |
| Rechargeable long lasting LiFePO4 battery |
| General Specifications | |
|---|---|
| Detector Responsivity | Photopic response in accordance with ASTM E1710 paragraph 6.3.2 |
| RL Range (mcd/m²/lx) | 0 to 8,000 |
| Qd Range (mcd/m²/lx) | 0 to 400 |
| Entrance angle | 88.76° per ASTM E1710 |
| Illumination angle | 1.24° per EN1436 |
| Observation angle | 1.05° per ASTM E1710 |
| Observation angle | 2.29° per EN1436 |
| Illumination angle Qd | Diffuse |
| Illumination Area | 2.4in. x 7.9in. (6cm x 20cm); 19 sq-in (120cm.) |
| Profiled marking measurement | Up to 0.59-in (15 mm) |
| Measurement Time | RL only: <0.1 sec; RL and color: <0.1 sec; RL and Qd: <0.2 sec; RL, color, and Qd: <0.2 sec |
| Battery Charger | 100-240 VAC, 50-60 Hz mains wall charger |
| Data Memory | 25,000 measurements |
| Computer Interface | USB & Bluetooth |
| Operating Temperature | 0° to 50°C (32° to 122°F) |
| Operating Humidity | 0 to 95% non-condensing |
| Dimensions | 28.7in (73.0cm) L x 7.1in (18.1cm) W x 8.0in (20.3cm) H w/ handle retracted. 25.7in (65.4cm) w/ handle extended |
| Weight | Instrument: 14.9 lbs. (6.8 kg) |
